Private home in Coín: 6.48 kWp of solar with a 16 kWh battery
At a private home in Coín we installed 12 AIKO 540 Wp panels on a traditional tiled roof, connected to a 6 kW single-phase Deye inverter and a 16 kWh MTS low-voltage battery. Solar generation and local storage in one system.
Installed system
- Location
- Coín, Málaga
- Customer type
- Private home
- Panels
- 12 × AIKO 540 Wp
- PV capacity
- 6.48 kWp
- Inverter
- Deye 6 kW single-phase
- Battery
- MTS Low Voltage 16 kWh
- System type
- Solar panels + battery storage
- Roof
- Traditional tiled roof
How we built it

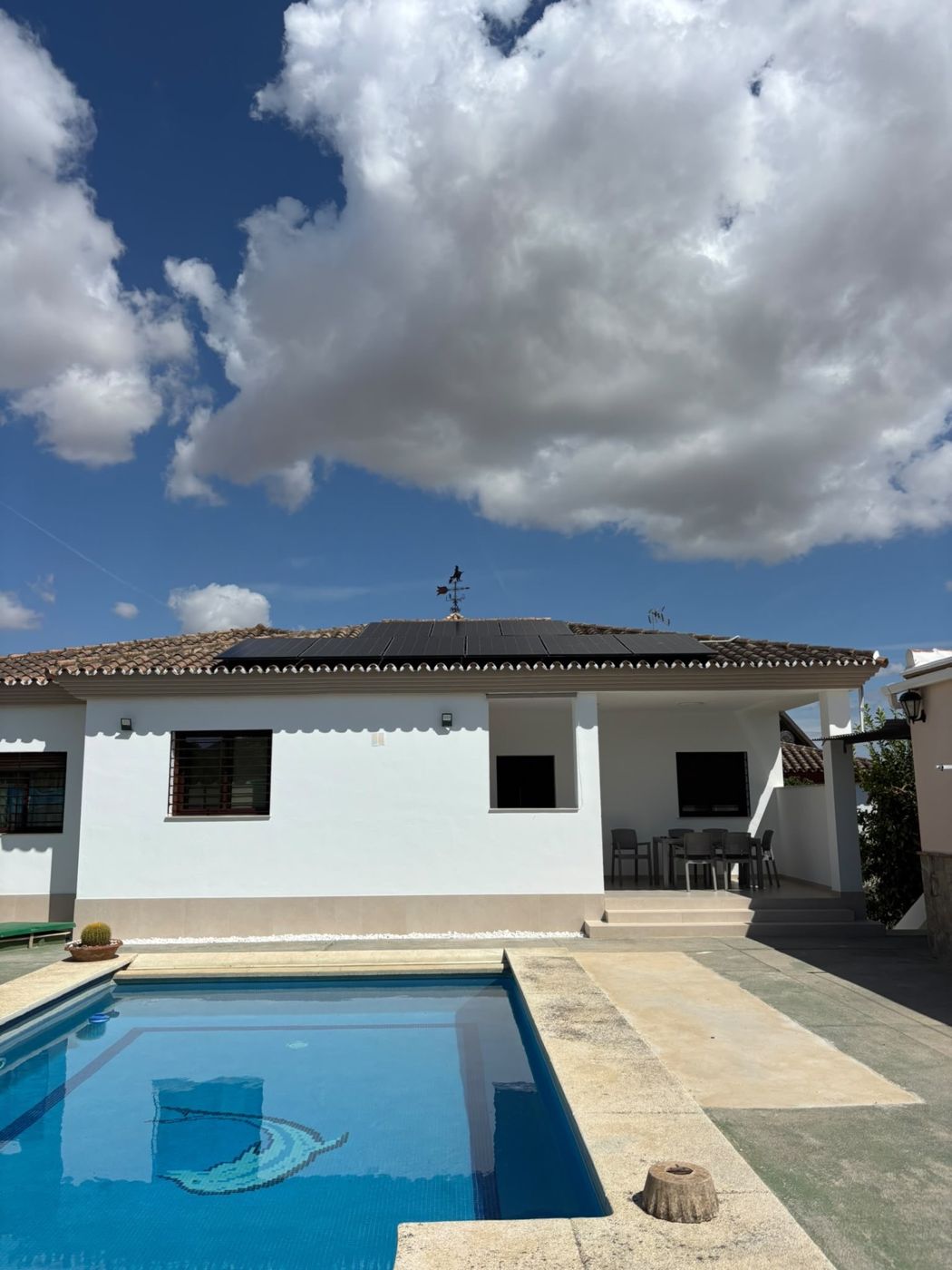

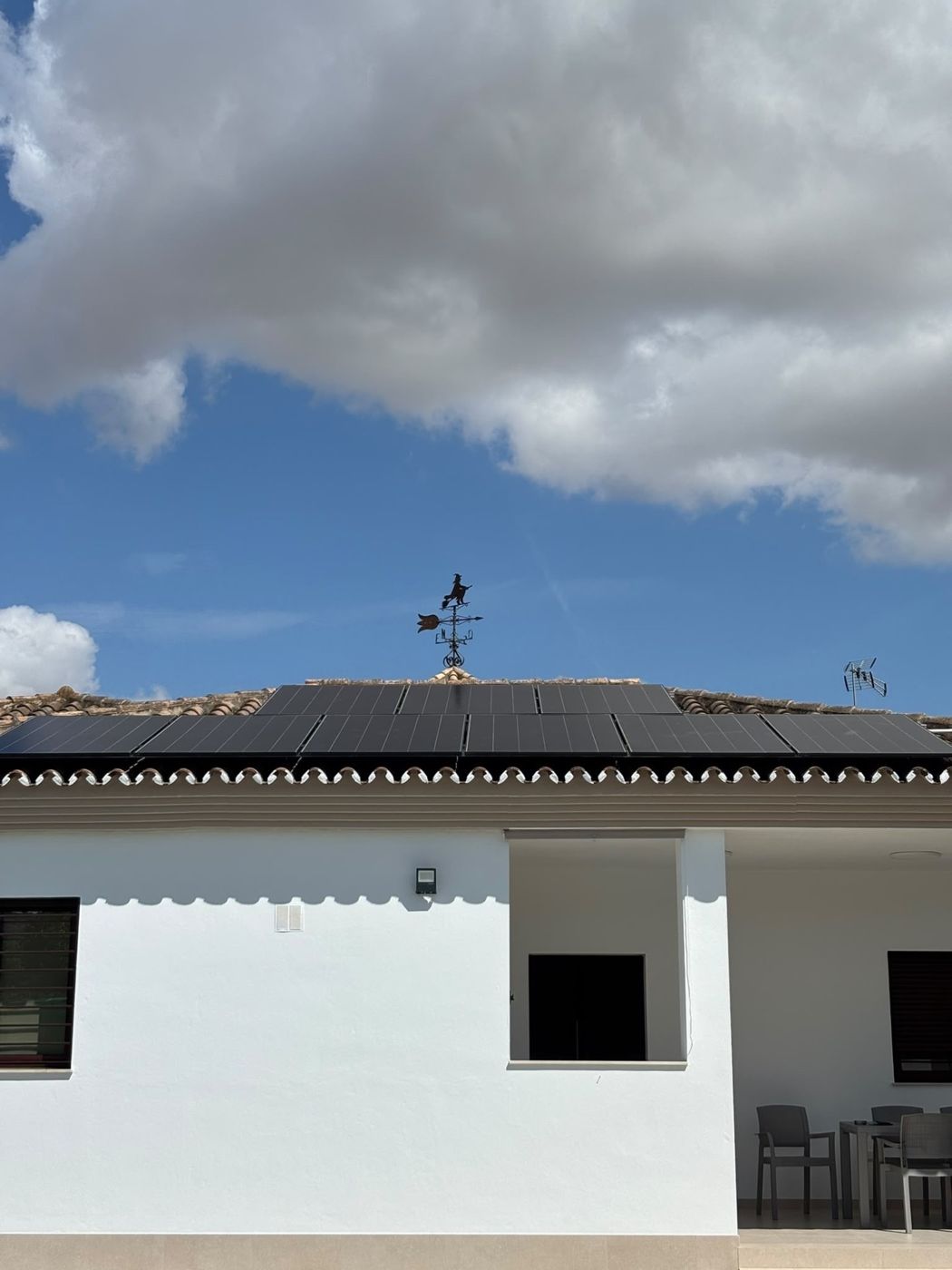

The project is a private home in Coín with a traditional tiled roof. On it we mounted twelve AIKO 540 Wp panels, adding up to 6.48 kWp of PV capacity, laid out on the roof plane with the longest sun exposure and following the line of the roof.

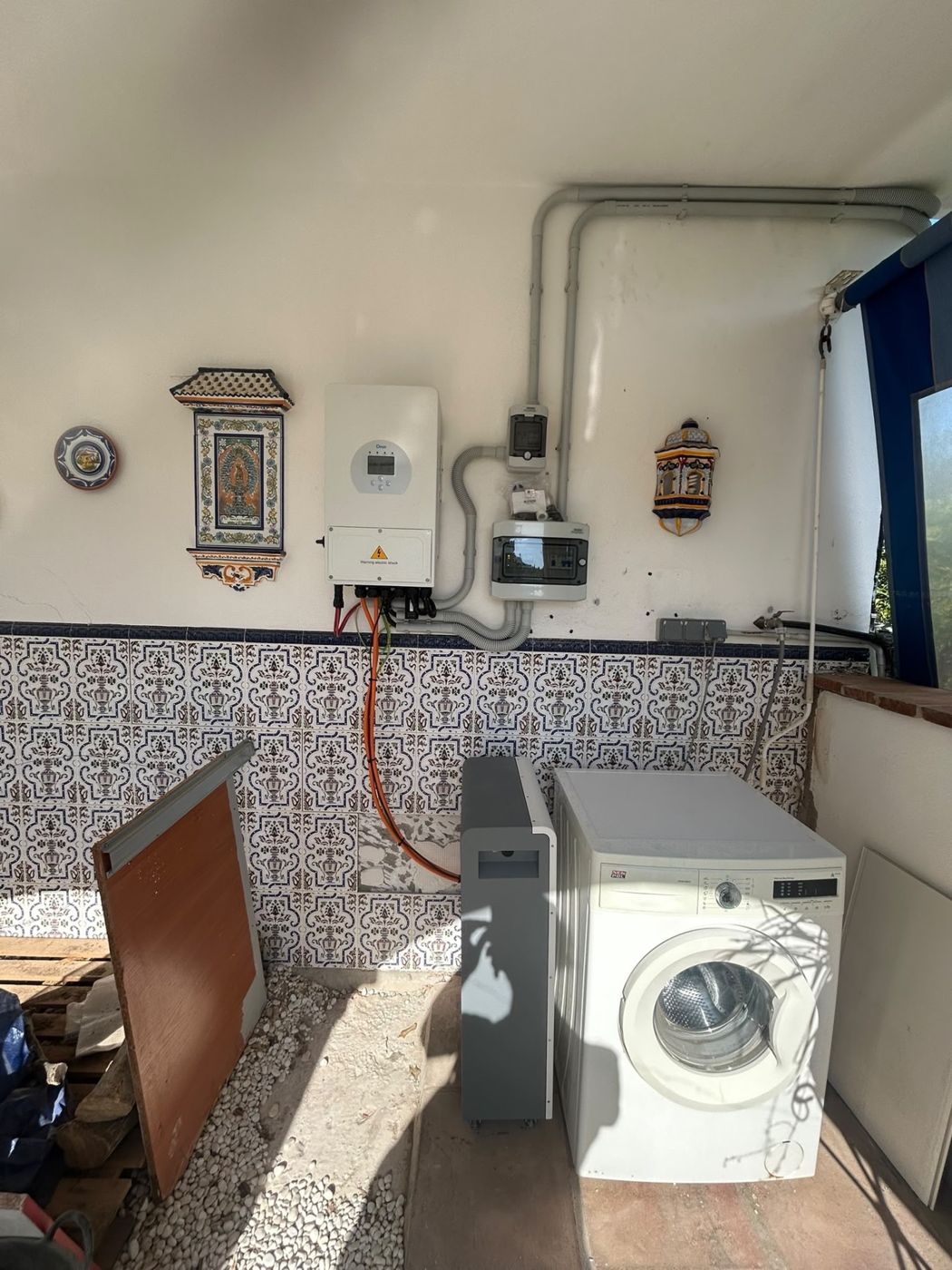

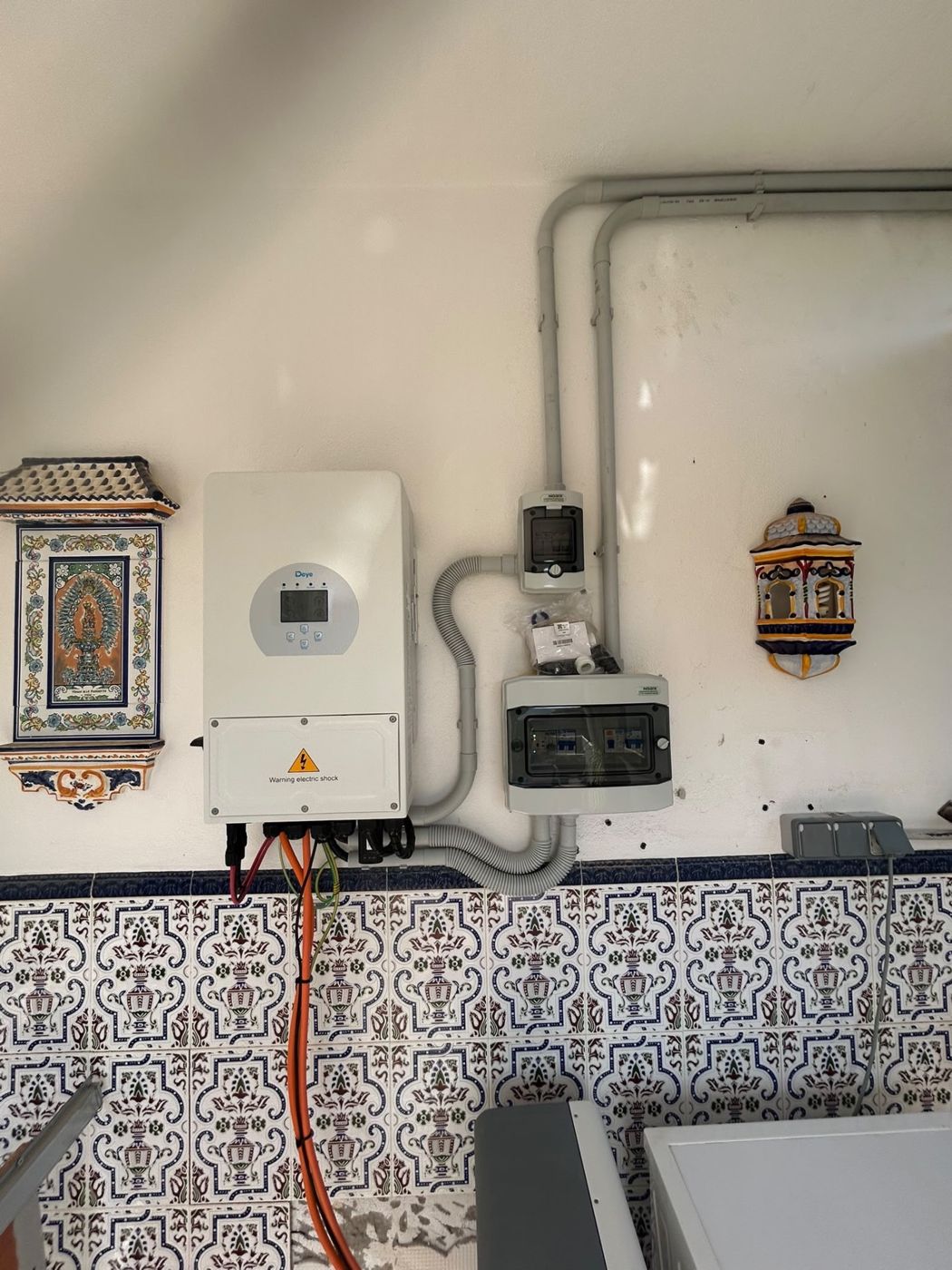

The technical side sits in the house's service area: a 6 kW single-phase Deye hybrid inverter, its DC and AC protections in a sealed enclosure, and a 16 kWh MTS low-voltage battery placed next to the inverter.
With this combination, the energy the panels produce is used in the house first; the surplus charges the 16 kWh battery instead of going straight to the grid, and that stored energy is available once the sun is gone. This is the usual approach when a good share of the consumption happens in the evening and at night.
We do not publish annual production, savings or payback for this installation: we only share figures when they come from monitoring data or the customer's real bills. The technical data on this page is that of the project as built.
Photos of this project
Planning something similar?
Prices, sizing and the quote request for Coín are on the pages below.
Frequently asked questions about this project in Coín
- What equipment was installed in this project in Coín?
- Location: Coín, Málaga · Customer type: Private home · Panels: 12 × AIKO 540 Wp · PV capacity: 6.48 kWp · Inverter: Deye 6 kW single-phase · Battery: MTS Low Voltage 16 kWh · System type: Solar panels + battery storage · Roof: Traditional tiled roof
- Is this a real Mi Techo Solar project?
- Yes. It is an installation carried out by our own team in Coín, Málaga, and the photos on this page are from the project itself. We do not publish the customer's name or the exact address.
- Why is there no production, savings or price figure?
- We only publish figures we can verify for that specific project. Production and savings depend on each home's consumption, tariff and usage, so we calculate them for your own situation in the quote instead of showing general numbers here.
- Can you do a similar installation in Coín?
- Yes, we work in Coín and across the province of Málaga from our base in Coín. Message us on WhatsApp or call +34 685 325 739 and we will tell you what is possible on your roof.
We install this ourselves
Mi Techo Solar carried out this project in Coín with its own installation team. Would you like the same for your home? Contact us directly and we will look at your roof and your consumption with you.
