Home in Alhaurín el Grande: 8.1 kWp with a 16 kWh battery and full back-up
At a home in Alhaurín el Grande we installed 15 AIKO 540 Wp panels on a ground-mounted structure, with a 10 kW single-phase Deye LV inverter and a 16 kWh MTS battery. The system is configured with whole-home back-up and automatic changeover through an ATS.
Installed system
- Location
- Alhaurín el Grande, Málaga
- Customer type
- Private home
- Panels
- 15 × AIKO 540 Wp
- PV capacity
- 8.1 kWp
- Inverter
- Deye LV 10 kW single-phase
- Battery
- MTS 16 kWh
- Back-up
- Whole-home back-up with ATS (automatic transfer switch)
- Mounting
- Ground-mounted structure on concrete blocks, no roof penetrations
How we built it

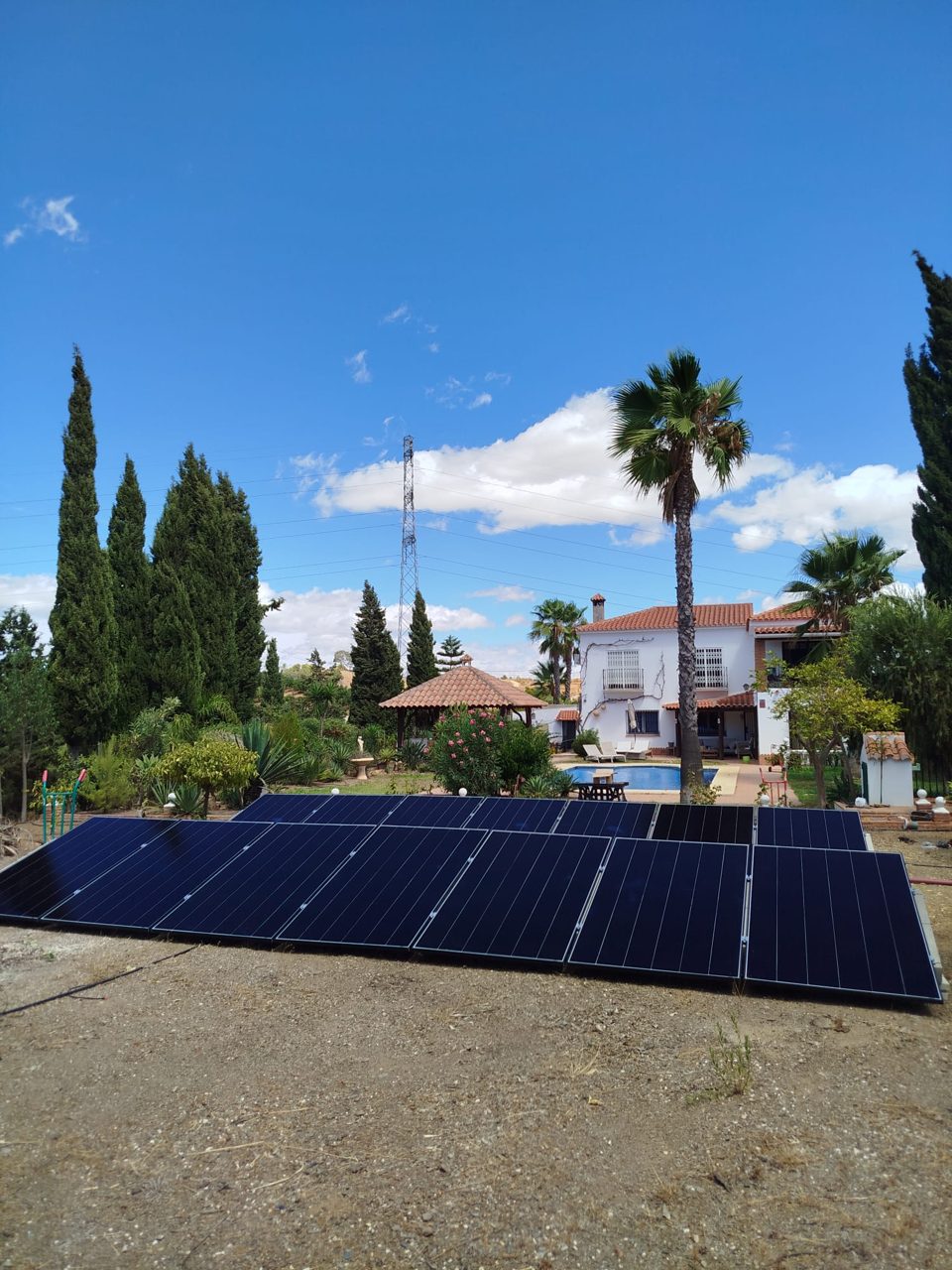

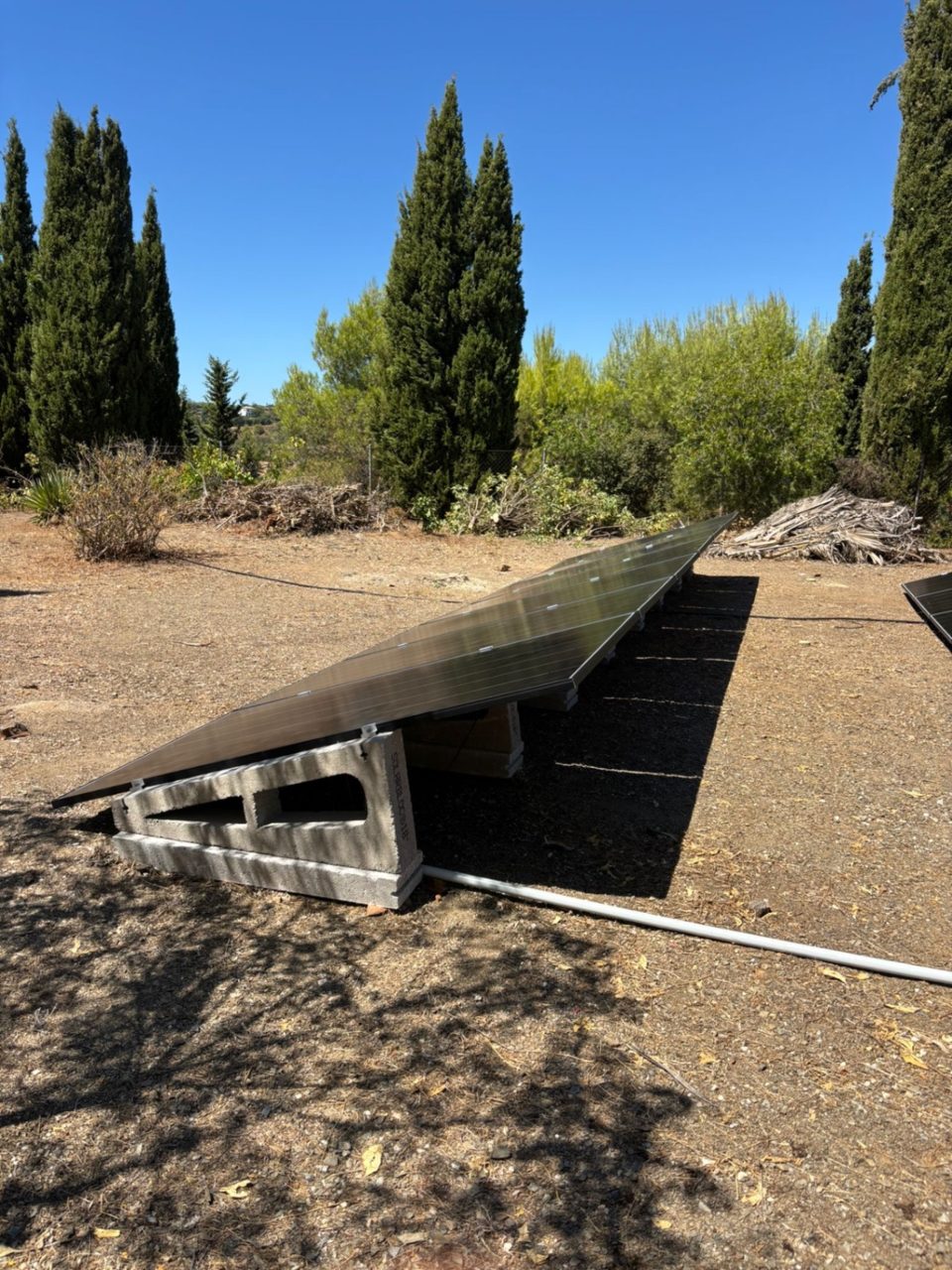

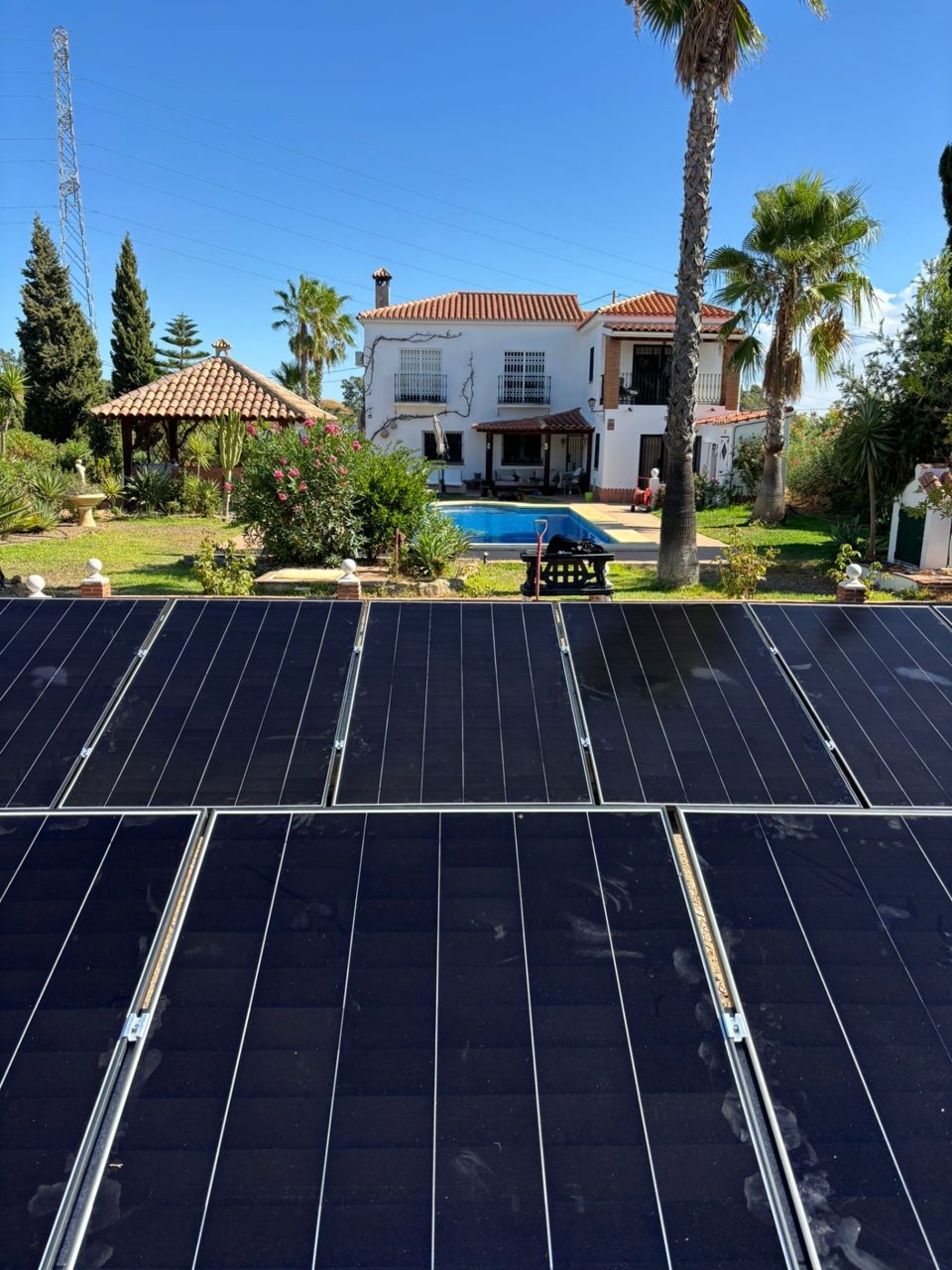

The 15 AIKO 540 Wp panels were not mounted on the roof but on the plot itself: the property has open space and a clear orientation, so the structure rests on precast concrete blocks and is held in place by weight, without touching the roof or its waterproofing.

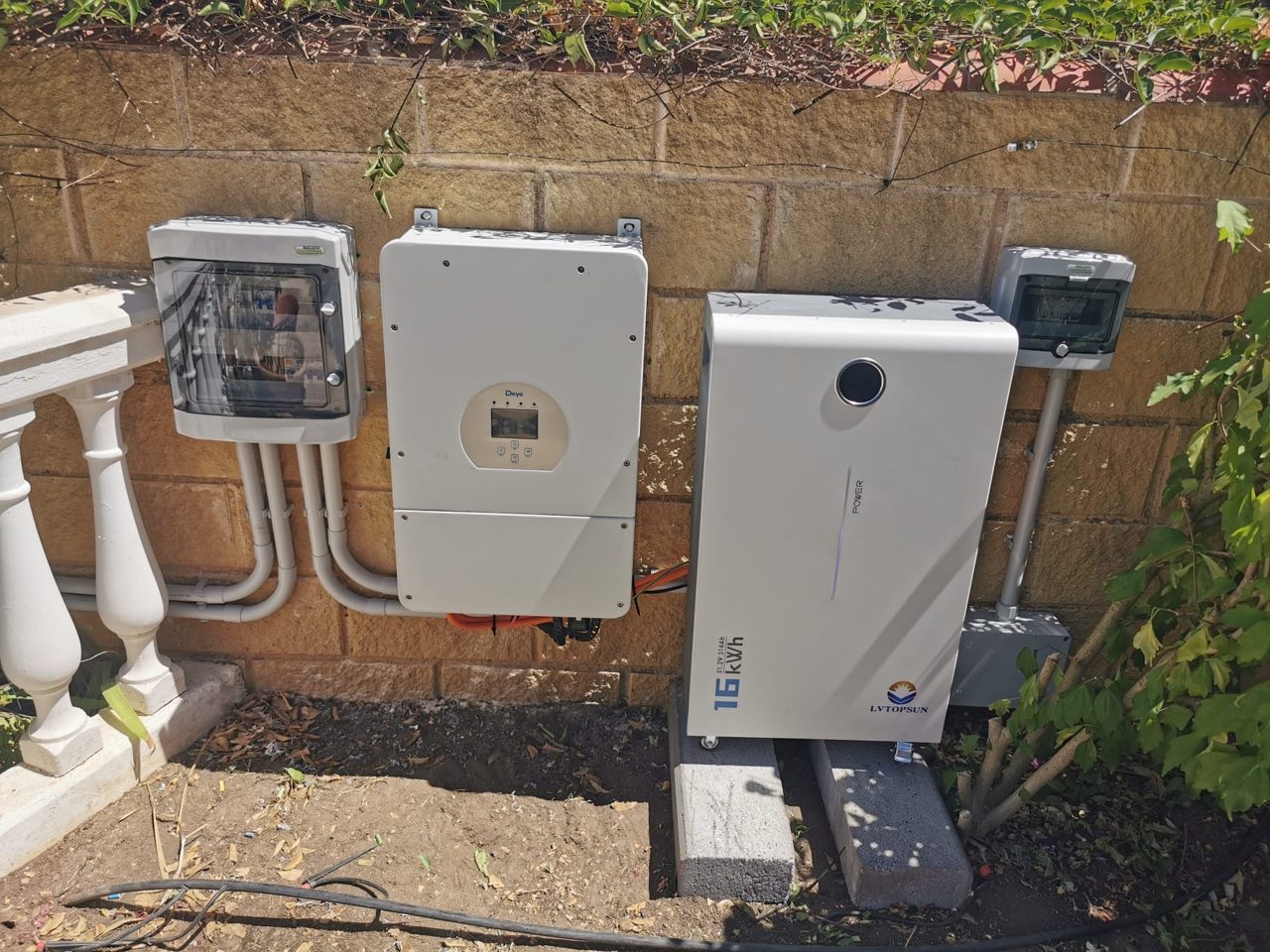

The system is run by a 10 kW single-phase Deye LV inverter coupled to a 16 kWh MTS battery. The low-voltage/10 kW combination leaves headroom for the home's consumption peaks and for charging the battery with midday surplus.
The installation is set up as a full back-up: in a grid outage an ATS automatically switches the home over to the inverter and battery, with no manual intervention. This is the usual configuration in inland Málaga, where supply cuts are not unusual.
We do not publish annual production, savings or payback for this installation: we only share figures when they come from monitoring data or the customer's real bills. The technical data on this page is that of the project as built.
Photos of this project
Planning something similar?
Prices, sizing and the quote request for Alhaurín el Grande are on the pages below.
Frequently asked questions about this project in Alhaurín el Grande
- What equipment was installed in this project in Alhaurín el Grande?
- Location: Alhaurín el Grande, Málaga · Customer type: Private home · Panels: 15 × AIKO 540 Wp · PV capacity: 8.1 kWp · Inverter: Deye LV 10 kW single-phase · Battery: MTS 16 kWh · Back-up: Whole-home back-up with ATS (automatic transfer switch) · Mounting: Ground-mounted structure on concrete blocks, no roof penetrations
- Is this a real Mi Techo Solar project?
- Yes. It is an installation carried out by our own team in Alhaurín el Grande, Málaga, and the photos on this page are from the project itself. We do not publish the customer's name or the exact address.
- Why is there no production, savings or price figure?
- We only publish figures we can verify for that specific project. Production and savings depend on each home's consumption, tariff and usage, so we calculate them for your own situation in the quote instead of showing general numbers here.
- Can you do a similar installation in Alhaurín el Grande?
- Yes, we work in Alhaurín el Grande and across the province of Málaga from our base in Coín. Message us on WhatsApp or call +34 685 325 739 and we will tell you what is possible on your roof.
